Tin Plate Lite

Tin Plate Lite—System-matched and guaranteed to run on GED Intercept® Spacer Frame machines

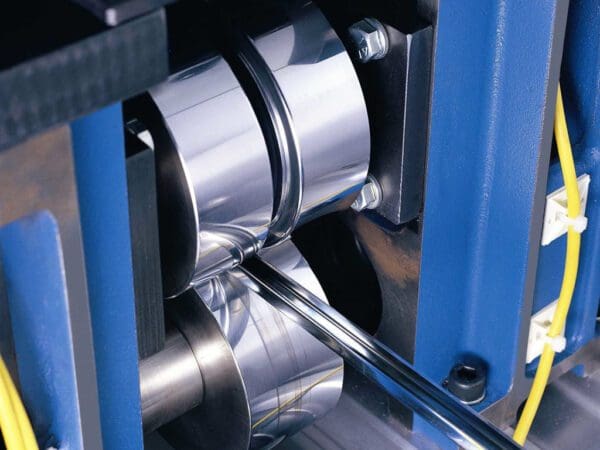

Tin Plate Lite® was designed in conjunction with GED as an improvement to standard Tin Plate Steel Coil on the Intercept roll former.  Tin Plate Lite is designed with a specific formulation for improved equipment performance and overall lower operating costs.

No equipment adjustments are needed to run Tin Plate Lite.  Moreover, Tin Plate Lite reduces build-up by 90%, which reduces overall maintenance and per unit manufacturing costs.

Tin Plate Lite is the new alternative steel coil for your roll former frame building machinery.

User Benefits

• 90% less build-up on GED Intercept roll formers
• No equipment adjustments needed
• Reduced labor & production costs
• Approved by four major sealant manufacturers

Leading Edge Benefits

• System-matched GED approved material
• All prime material
• Stocked sizes across North America
• Competitive pricing

Technical Specifications

• Compliances:  GED Intercept, H.B.Fuller, PPG, & Kommerling
• Architectural Testing:  ASTM E2188  E2190 IG Durability
• Material Thickness:  0.0105″ + / – 0.0005
• Weight:  95# per base box (0.0105″) thickness
• Temper:  T-4 (AIM 58-64 RW 90-t)
• Finish:  5# finish (AIM 45 + / – 15 micro-inches)
• Oil Level:  ATBC oil level 1 with minimum chemtreat -CDC-5 450 + / – 100 microgram / square ft
• Cut Slit Width Tolerance:  + 0.000″ / – 0.005″ burr-free edge
• Coil Core Size I.D.:  16″
• Coil O.D.:  36″ maximum
• Coil Weight of 1″ Wide:  225# (approximate)
• Linear Feet / Coil:  6400 ft (approximate)

Technical Data Sheet on Tin Plate Lite

Common Spacer / Coil Sizes
